IGCP Project 559 - Seismic Images

Agulhas-Karoo Geoscience Transect, South Africa

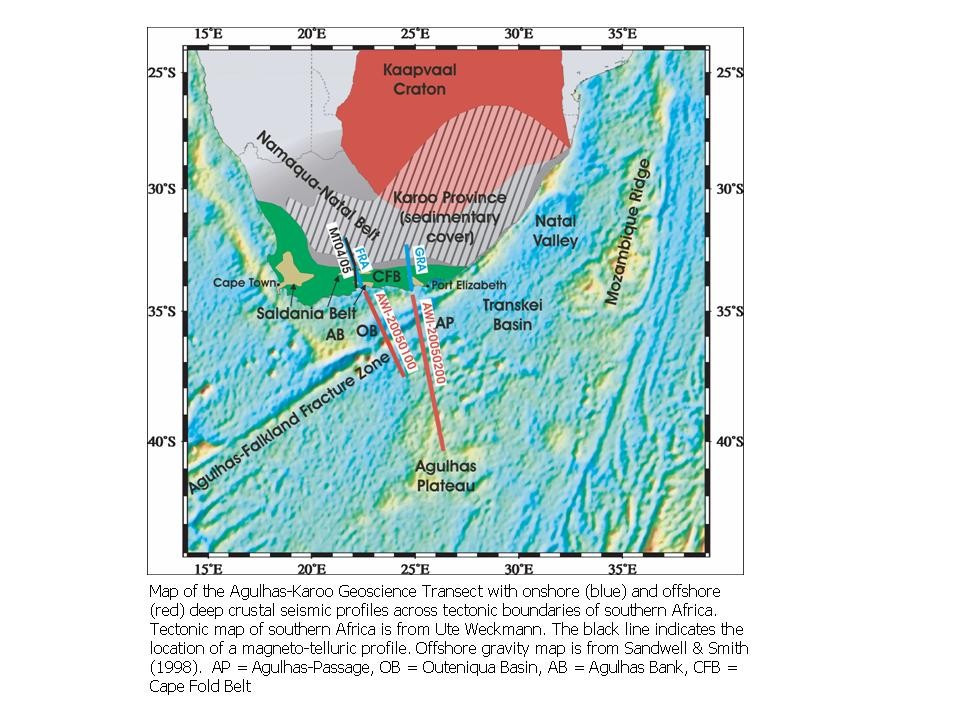

Southern Africa and its southern continental margin offer an unrivalled region, where continental accretation processes over a period of more than 3.5 billion years can be studied. Along a geoscientific transect from the Agulhas Plateau across the Agulhas-Falkland fracture zone, the Outeniqua Basin , the Cape Fold Belt, the Namaqua-Natal Belt into the Karoo Province , geophysical and geological data and samples have been collected in 2004 and 2005. These data are currently being used to build a model of the evolution and crustal accretation as well as the continental break-up of this region. The Agulhas-Karoo Geoscience Transect is part of the South African - German cooperative research project “Inkaba ye Africa ”, which aims to investi ga te South Africa in a cone-shaped sector from core to space. A combined land-sea deep crustal seismic reflection and refraction survey as well as a magneto-telluric survey provide detailed structures and constraints for physical parameters from the sediments to the upper mantle which will be integrated with geological, petrological and geochemical analysis on rock composition, age and alteration history to form an overarching geodynamic model of the evolution of this region and its sedimentary, tectonic and magmatic units.

The transect addresses the following important questions:

• Understanding the geodynamic processes along Africa ’s southern continental margin.
• How did the sheared margin affect South Africa ’s vertical motion?
• What are the age, source and the crustal nature of the Agulhas Plateau?
• How did the Outeniqua Basin form and of which type is the underlying basement?
• Can structural details within the Southern Cape Conductivity Belt (SCCB) be resolved?
• Do the Beattie Magnetic Anomaly (BMA) and the SCCB have the same source?
• What are the sources causing the BMA and SCCB?
• What is the geometry of tectonic and stratigraphic boundaries within the Cape Fold Belt?
• To what extend can the Cape Fold Belt be followed offshore to the south?

Coordinators:

Karsten Gohl , Alfred Wegener Institute for Polar and Marine Research (AWI), karsten.gohl@awi.de
Oliver Ritter, GeoForschungsZentrum Potsdam (GFZ), oritter@gfz-potsdam.de
Maarten de Wit , University of Capetown , maarten@cigces.uct.ac.za
